For sequencing DNA libraries on the MiSeq FGx System,Supports up to 5 million paired-end reads for small batch sizes and faster turnaround times.

Features

Adjustable read length for flexibility across a broad range of applications

Flexible kit sizes for deep sequencing or faster turnaround

Pre-filled cartridges with intuitive user workflow

Optimized chemistry delivers exceptional data quality

Quality controlled to meet forensic standards

Extended shelf life supports long-term forensic projects

Product Details

Generate high-quality sequencing data with MiSeq FGx Sequencing Reagents. These pre-filled, ready-to-use cartridges leverage gold-standard sequencing-by-synthesis (SBS) chemistry to support a range of laboratory throughput requirements. MiSeq FGx Sequencing Reagents support both Forensic Genomics and Research Use Only modes on the MiSeq FGx Sequencing System to simplify inventory and ordering for all applications.

Performance

The MiSeq FGx Reagent Kit has been optimized for sequencing forensic samples and delivers high-quality performance for a range of forensic applications. The extended read lengths enable deep sequencing of STRs, mtDNA and SNPs. The MiSeq FGx Reagent Micro Kit is purpose-built for lower throughput and faster sequencing time, while delivering equivalent quality. Both kit sizes are quality controlled to meet the high standards expected from forensic laboratories. The MiSeq FGx Sequencing Reagents are integral to the MiSeq FGx Sequencing System and support analysis of libraries across the range of Verogen NGS kits.

Feature                         MiSeq FGx Reagent Kit         MiSeq FGx reagent Micro Kit

Kit size                         600 cycles                         600 cycles

Maximum read length 2 x 300 bp                         2 x 300 bp

Number of reads         12.5 million                         5 million

Maximum output          15 Gb                                 5 Gb

Reagent type   Cluster generation, SBS, paired-end sequencing

                          Cluster generation, SBS, paired-end sequencing

Nucleic acid type DNA, RNA, mtDNA                        DNA, RNA, mtDNA

Technology  Next-generation sequencing (NGS) Next-generation sequencing (NGS)

System compatibility MiSeq FGx System                 MiSeq FGx System

Principle

The MiSeq FGx System achieves exceptional data quality by employing a proprietary, reversible terminator‑based method that detects single bases as they are incorporated into massively parallel DNA strands. Fluorescent terminator dyes are imaged as each deoxynucleotide triphosphate (dNTP) is added and then cleaved to allow incorporation of the next base. With all four reversible, terminator-bound dNTPs present at each sequencing cycle, natural competition among bases minimizes incorporation bias.

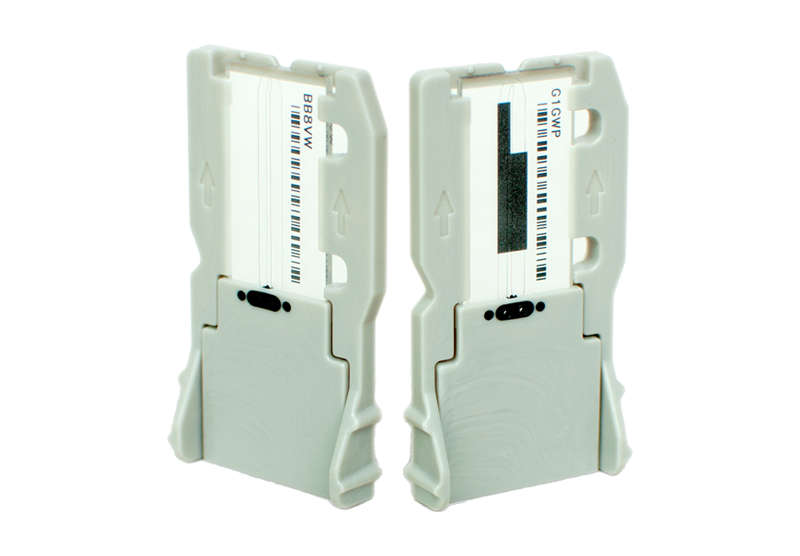

The MiSeq FGx Reagent Micro Kit and the MiSeq FGx Reagent Kit are identical in manufacture. With both kits, the best-in-class sequencing-by-synthesis (SBS) technology remains unaltered. The only difference is the surface area of the flow cell available for imaging. The MiSeq FGx System images the micro flow cell at approximately 35% of the standard flow cell area for a total output of 5 million reads.

Procedure

The first sequencing step of the MiSeq FGx Sequencing System uses a library prep kit to add primers to genomic DNA (gDNA), mtDNA, or mRNA extracted from forensic samples for simultaneous capture and amplification of hundreds of target regions, generating dual-indexed libraries ready for sequencing. After library prep, load-and-go MiSeq FGx Sequencing Reagents streamline run setup. Simply thaw the prefilled reagent cartridge, add libraries to the cartridge, and insert the cartridge into the instrument. The system software accepts run parameters and starts sequencing with the push of a button.

Applications

The MiSeq FGx System and the MiSeq FGx Reagent kits enable capabilities across all biological molecules and a growing number of forensic applications, including both short- and long-range kinship analysis. Adjustable read lengths, flow cell options and choice of run modes allow unprecedented flexibility for matching data output to an ever-increasing range of human identification needs. This gold-standard sequencing chemistry coupled with the trusted ForenSeq workflow and Universal Analysis Software can enable laboratories of all sizes and throughputs to adopt and operationalize NGS forensic workflows.

Software

The MiSeq FGx System features an intuitive touch-screen interface that provides step-by-step guidance through each stage of a sequencing run. Complementing the onboard software, the system integrates with Universal Analysis Software (UAS), a fully optimized analysis platform that delivers a powerful suite of forensic‑tuned capabilities, including automatic detection of mixed samples, generation of population statistics, database‑compatible reports, and more.

Services

We offer superior support across the entire workflow, from library prep to sequencing to analysis. Our experienced team provides comprehensive service coverage for your equipment and software, validation plans, and implementation guidance so you can quickly operationalize your workflows with ease.
